PEMODELAN RANGKAIAN UMPAN BALIK PADA SISTEM RADIO FREKUENSI SIKLOTRON DECY-13 BERBASIS PROGRAMMABLE LOGIC CONTROLLER F2424 UNTUK STABILISASI FREKUENSI

Febi Lutfiatul Hanifah, NIM.: 21106020042 (2025) PEMODELAN RANGKAIAN UMPAN BALIK PADA SISTEM RADIO FREKUENSI SIKLOTRON DECY-13 BERBASIS PROGRAMMABLE LOGIC CONTROLLER F2424 UNTUK STABILISASI FREKUENSI. Skripsi thesis, UIN SUNAN KALIJAGA YOGYAKARTA.

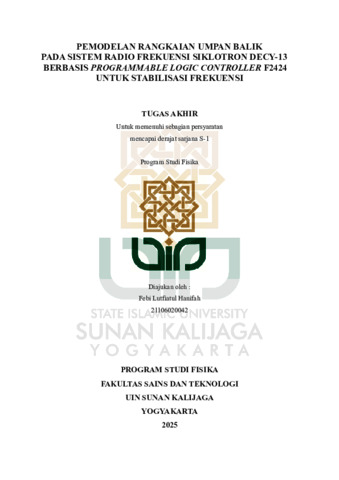

Preview	Text (PEMODELAN RANGKAIAN UMPAN BALIK PADA SISTEM RADIO FREKUENSI SIKLOTRON DECY-13 BERBASIS PROGRAMMABLE LOGIC CONTROLLER F2424 UNTUK STABILISASI FREKUENSI) 21106020042_BAB-I_IV-atau-V_DAFTAR-PUSTAKA.pdf - Published Version Download (6MB) | Preview
	Text (PEMODELAN RANGKAIAN UMPAN BALIK PADA SISTEM RADIO FREKUENSI SIKLOTRON DECY-13 BERBASIS PROGRAMMABLE LOGIC CONTROLLER F2424 UNTUK STABILISASI FREKUENSI) 21106020042_BAB-II_sampai_SEBELUM-BAB-TERAKHIR.pdf - Published Version Restricted to Registered users only Download (14MB) | Request a copy

Abstract

This study aims to design a model, create a model and simulate a feedback circuit model on the DECY-13 RF cyclotron system based on the F2424 PLC. This study was conducted in three stages, namely designing a feedback circuit model, creating a feedback circuit model, and simulating a feedback circuit model. The design and creation of this model are based on the F2424 PLC and are carried out by creating a frequency stabilization program in the i-TRiLOGI application and creating a frequency stabilization indicator interface program in the LabVIEW application. The combination of the two programs uses the NI OPC Server. Model simulation includes software and hardware simulations. Software simulation consists of simulating frequency value grouping and simulating frequency readings after being calculated by the software. While hardware simulation consists of simulating stepper motor direction readings and simulating stepper motor step readings. The percentage of software simulation success was 100% and hardware success was 99.81%, including 100% stepper motor direction reading simulation and 99.62% stepper motor step reading simulation.
