RANCANG BANGUN APLIKASI WATER CONTACT ANGLE ANALYZER DENGAN MENGGUNAKAN METODE OTSU THRESHOLDING, CANNY EDGE, HOUGH LINE TRANSFORM DAN CIRCLE FITTING CURVE BERBASIS PYTHON

Trengginas Wibowo Shidiq, NIM.: 22106020003 (2026) RANCANG BANGUN APLIKASI WATER CONTACT ANGLE ANALYZER DENGAN MENGGUNAKAN METODE OTSU THRESHOLDING, CANNY EDGE, HOUGH LINE TRANSFORM DAN CIRCLE FITTING CURVE BERBASIS PYTHON. Skripsi thesis, UIN SUNAN KALIJAGA YOGYAKARTA.

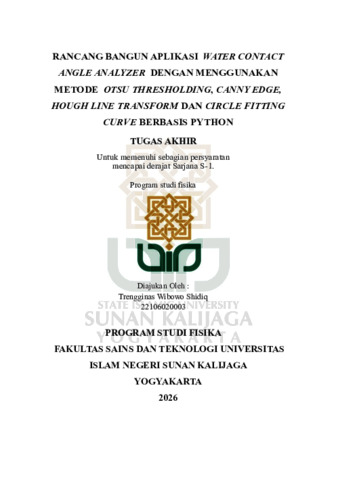

Preview	Text (RANCANG BANGUN APLIKASI WATER CONTACT ANGLE ANALYZER DENGAN MENGGUNAKAN METODE OTSU THRESHOLDING, CANNY EDGE, HOUGH LINE TRANSFORM DAN CIRCLE FITTING CURVE BERBASIS PYTHON) 22106020003_BAB-I_IV-atau-V_DAFTAR-PUSTAKA.pdf - Published Version Download (3MB) | Preview
	Text (RANCANG BANGUN APLIKASI WATER CONTACT ANGLE ANALYZER DENGAN MENGGUNAKAN METODE OTSU THRESHOLDING, CANNY EDGE, HOUGH LINE TRANSFORM DAN CIRCLE FITTING CURVE BERBASIS PYTHON) 22106020003_BAB-II_sampai_SEBELUM-BAB-TERAKHIR.pdf Restricted to Registered users only Download (11MB) | Request a copy

Abstract

An automated Water Contact Angle (WCA) Analyzer application based on computer vision was developed using Python to automatically measure water contact angle. The application integrates Image Preprocessing, image segmentation using Otsu Thresholding, baseline detection using Canny Edge and Hough Line Transform, droplet profile reconstruction using Circle Fitting Curve, and automatic contact angle calculation and wettability classification, accessible through a PyQt5-based graphical user interface. Validation was performed by comparing the results with ImageJ (LB-ADSA plugin) using 120 microscopic images from a Dino-Lite microscope (220x magnification), covering 24 angle values from hydrophilic and hydrophobic samples. The results show an average Mean Absolute Error (MAE) of 0.74°, an accuracy of 99.40%, and a precision of 99.74% relative to ImageJ, with a Root Mean Squared Error (RMSE) of 1.7249°, indicating that the deviation was dominated by systematic error caused by the geometric assumption of Circle Fitting at high contact angles (>120°). The application also successfully classified all samples into the correct wettability category with 100% accuracy. These results demonstrate that the developed WCA Analyzer application provides accurate, precise, and consistent contact angle measurements, offering a promising, objective, automated, and affordable alternative for surface wettability characterization.
